16X1 HDMI Multi Viewer 16 in 1 out Video Switcher AV Seamless Switching Processor
Introduction

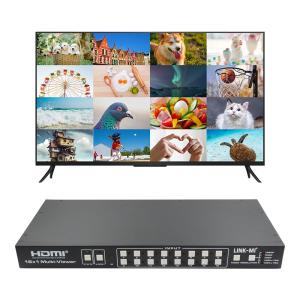

LINK-MI LM-S161 is a high performance 16x1 Multi-Viewer with seamless switcher. It supports 16 High definition input source display on one screen. As a switcher, it can also seamlessly switch the 16 HD inputs freely. The product can be controlled by various ways, through the front panel button control and RS-232 control etc.
Features
1. Compliant with HDMI 1.3a,HDCP 1.2；
2. Supports multiplexed HDMI 16-input and 1-output；
3. Supports up to 1080p High Definition resolution；
4. Support 16 by 1 Quad Multi-viewer and seamless switch；
5. Support scale up, scale down function；
6. Support multiple output resolution；
7. Support digital audio format LPCM/AC3/DTS
8. Support button and RS-232 control；
Specification
| Technical |
| Video Bandwidth | 2.25Gbps |
| Input Ports | 16 × HDMI (Female type),1x RS232 |
| Output Ports | 1 × HDMI (Female type), |
| Audio output | PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 |
| Input Resolution | 480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz, 1080i50/60Hz,1080p 24/30/50/60Hz,800x600@60, 1024x768@60,1280x720@60,1920x1080@60; |
| Output Resolution | 1080p,1080i,720p,1024x768,1360x768 |
| ESD Protection | ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Power Supply | 12V/5A DC (US/EU standards, CE/FCC/UL certified) |
| Dimensions | 440mm(W)×200mm(D)×45 mm(H) |
| Weight | 1800g |
| Chassis Material | Metal |
| Silkscreen Color | Black |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Power Consumption | 24W |
| Note: Specifications are subject to change without notice |

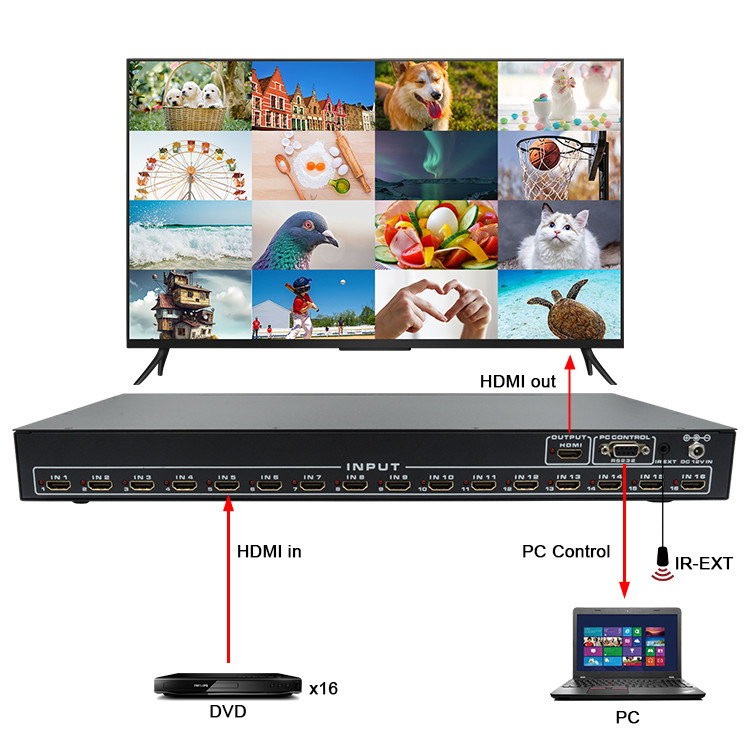

Connection Diagram

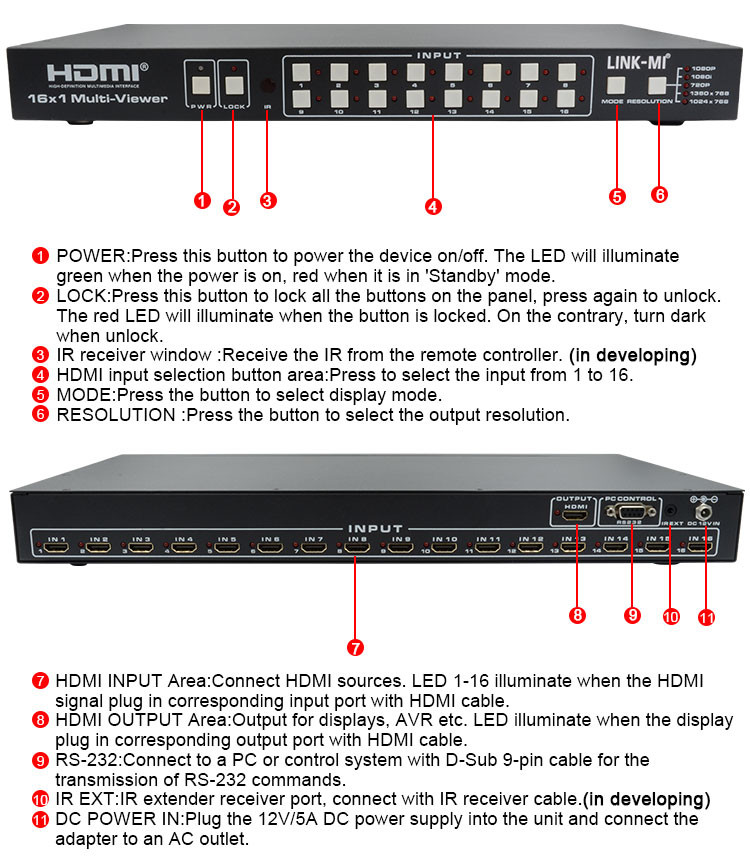

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-S161 16x1 HDMI Multi-Viewer with Seamless Switc...
