800m Wireless HD Video Transmission Kit For Live Broadcast
Introduction
LINK-MI LM-VT800 The wireless transmission system can help a variety of video transmission platform to achieve easy to carry, install fast, real zero-wiring, plug & play, change the traditional site wiring and get rid of cumbersome cabling,enhanced video transmission system Flexibility.
Features
1. Wireless full HD video transmission;
2. Min 50ms low latency enables no waiting for wonderful image receiving;
3. Reliable overvoltage protection for better ensuring the safety of power supply;
4. Supports both HDMI and SDI interfaces for video input/output;
5. Full hardware design; plug & play; eliminates the hassle of running wires, simple and convenient;
6. Transmission distance: up to 800 meters under the point-to-point mode(with 5dBi antenna in open space).
Specification
| TX |
| Operating Frequency | 5190MHz, 5230 MHz, 5270 MHz, 5310 MHz, 5510 MHz, 5550 MHz, 5590 MHz, 5630 MHz, 5670 MHz, 5755 MHz, 5795 Mhz |
| Antenna Mode | 4*4 5dBi External antenna |
| Modulation Mode | OFDM |
| Transmission power | 17dBm |
| EVM | <-28dB |
| Receiving Sensitivity | <-70dBm |
| Bandwidth | 40MHz |
| Wireless Protocol | 802.11n |
| Network encryption | WPA2/WPS |
| Network Mode | point-to-point private protocol, RTSP protocol |
| Transmission Distance | point-to-pointUp to 800m LOS, |
| Transmission Delay | 50ms(min) |
| Transmission Rate | Max 300Mbps |
| Pairing Function | Support |
| Frequency Hopping | Manual |
| HDMI Protocol | Support HDMI 1.3 |
| Video Resolution | 1080p , 1080і , 720p , 576p , 576і , 480p , 480i (up to 1080P/60Hz) |
| Audio Format | PCM |
| Video Compression Format | H.264 |
| External Audio | Support line-in audio input |
| IO port signal return | Support Tally signal return |
| Interface | Standard HDMI input*1, SDI port*2 (1 input, 1 Loop Through), 232 interface*1, DC 5.5 power supply input*1, CH button*1, MODE OLED*1, OK button*1, LINE IN*1 , RJ45 interface *1, Tally socket*1, |
| Operating Power Supply | DC12V/2A (with Part 6677) |
| Power Supply Range | 7-17V |
| Power Consumption | 8-12W |
| RX |
| Operating Frequency | 5190MHz, 5230 MHz, 5270 MHz, 5310 MHz, 5510 MHz, 5550 MHz, 5590 MHz, 5630 MHz, 5670 MHz, 5755 MHz, 5795 Mhz |
| Antenna Mode | 4*4 5dBi External antenna |
| Modulation Mode | OFDM |
| Transmission power | 17dBm |
| EVM | <-28dB |
| Receiving Sensitivity | <-70dBm |
| Bandwidth | 40MHz |
| Wireless Protocol | 802.11n |
| Network encryption | WPA2/WPS |
| Network Mode | point-to-point private protocol |
| Transmission Distance | point-to-pointUp to 800m LOS |
| Transmission Delay | 50ms(min) |
| Transmission Rate | Max 300Mbps |
| Pairing Function | Support |
| Frequency Hopping | Manual |
| HDMI Protocol | Support HDMI 1.3 |
| Video Resolution | 1080p , 1080і , 720p , 576p , 576і , 480p , 480i (up to 1080P/60Hz) |
| Audio Format | PCM |
| Video Compression Format | H.264 |
| External Audio | Support line-in audio output |
| IO port signal return | Support Tally signal return |
| Interface | Standard HDMI output*1, SDI output* 2 (2 channel simultaneous output),power supply input*1, CH button*1, 232 interface*1MODE OLED *1, OK button*1,RJ45 interface *1, Tally socket*1, |
| Operating Power Supply | DC12V/2A |
| Power Supply Range | 7-17V |
| Power Consumption | 7-9W |
| Note: Specifications are subject to change without notice. |

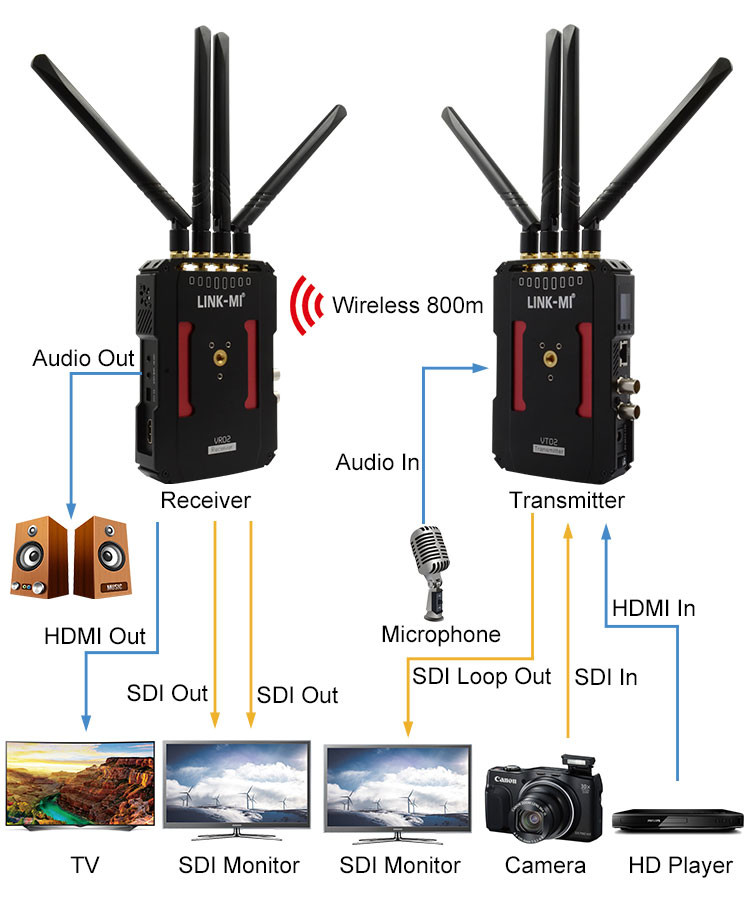

Connection Diagram

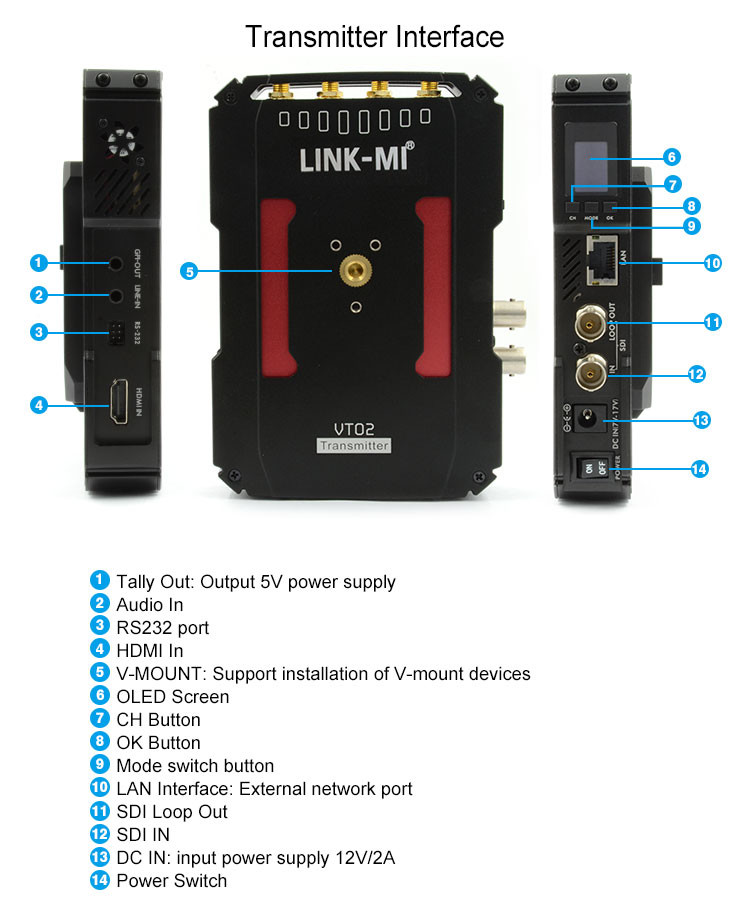

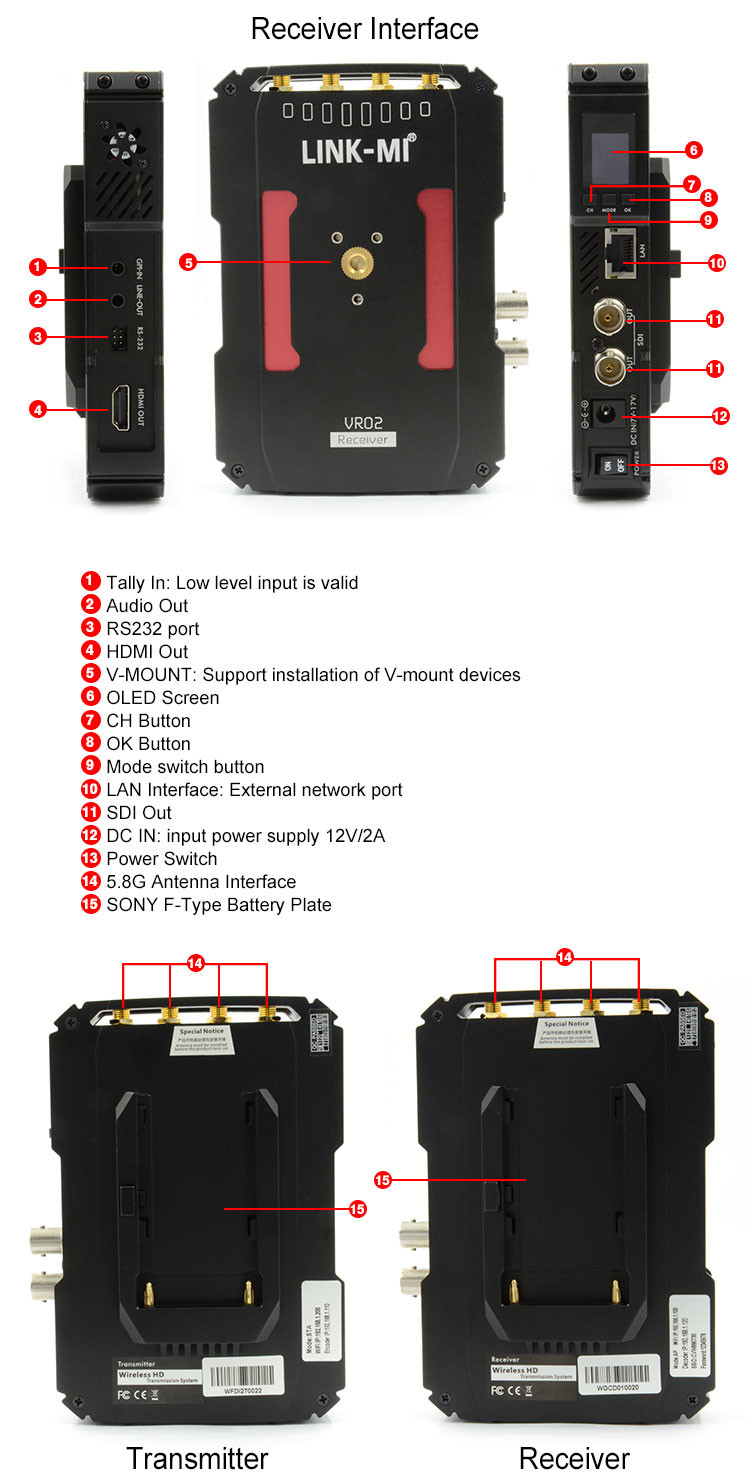

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-VT800 Wireless 800m HDMI SDI Transmission Kits....
